Hydraulic CALC
Version Information : 3.10
❚ ABOUT
This application was developed mainly to provide a swift access to a variety of formulas, theories and coefficients related to hydraulics for civil engineers, especially working in the field of water supply and sewage system.
Every single formula in the program was employed with meticulous care, but as errors might exist, subsequent examinations are recommended.
The accuracy of the program will be continually updated as well as the types of formulas provided.
❚ SUPPORT FORMULA LIST

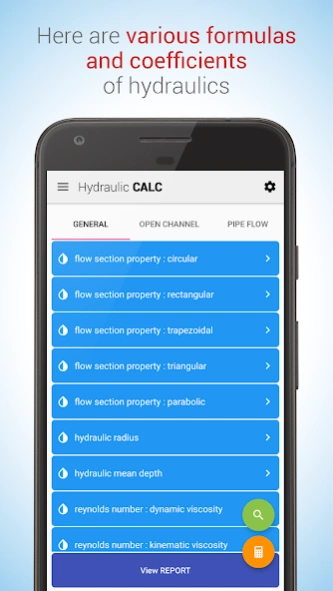

▶ GENERAL
- flow section property : circular / rectangular / trapezoidal / triangular / parabolic
- hydraulic radius, diameter
- reynolds, froude, weber, mach, euler number
- continuity equation
- bernoulli equation
- specific weight
- density
- dynamic viscosity
- kinematic viscosity
- specific gravity
- roughness height
- modulus of elasticity of material
▶ OPEN CHANNEL FLOW
- hydraulic mean depth
- manning formula : circular / rectangular / trapezoidal / triangular / parabolic
- ref : manning roughness coefficient
- normal depth : circular / rectangular / trapezoidal / triangular / parabolic
- kutter formula : circular / rectangular / trapezoidal / triangular / parabolic
- critical depth : circular / rectangular / trapezoidal / triangular / parabolic
- hydraulic jump
▶ PIPE FLOW
- entry length

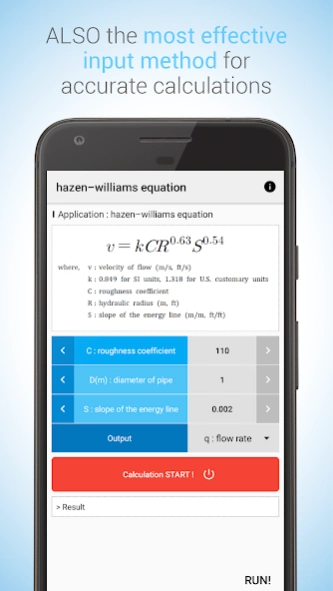

- hazen–williams equation
- ref : hazen–williams roughness coefficient
- darcy–weisbach equation
- darcy friction factor : laminar flow
- darcy friction factor : turbulent flow : colebrook–white equation
- darcy friction factor : turbulent flow : swamee–jain equation
- darcy friction factor : turbulent flow : alternatively
- minor loss : entrance
- minor loss : submerged discharge
- minor loss : sudden contraction / sudden expansion
- minor loss : gradual contraction / gradual expansion
- minor loss : bending / elbow
- ref : elbow loss coefficient
- minor loss : valve
- ref : valve loss coefficient
- discharge in parallel pipes
- equivalent length of pipe
- water hammer : wave travel time
- water hammer : speed of pressure wave
- water hammer : sudden closure, gradual closure
▶ WEIR/ORIFICE
- weir : rectangular : full width
- weir : rectangular : side contractions
- weir : rectangular : francis formula
- weir : cipoletti : discharge, head
- weir : triangular
- weir : triangular : kindsvater-shen equation
- weir : broad crested
- side overflow weir : discharge / head
- orifice : velocity / head
- large rectangular orifice
- time to empty tank
- underflow gates
▶ HYDROLOGY
- rational method : peak discharge
- ref : runoff coefficient
- time of concentration : US FAA
- time of concentration : kinematic wave
- ref : manning overland flow roughness coefficient
- time of concentration : kerby
- ref : kerby retardance coefficient
- time of concentration : kirpich
- ref : kirpich adjustment factor
- time of concentration : izzard
- ref : izzard retardance factor
❚ CONTACT US
E-mail :
[email protected]
Please send me any opinions, bug reports or suggestions about this application.
Those will be reflected in the following updates.
Previous Versions
Here you can find the changelog of Hydraulic CALC since it was posted on our website on 2021-01-27 20:31:50.
The latest version is 3.10 and it was updated on 2024-04-22 13:10:11. See below the changes in each version.
Hydraulic CALC version 3.10
Updated At: 2021-08-16
Changes: Hydraulic CALC 3.10 New Release
❚ BUG FIX (Hazen-Williams equation)
Hydraulic CALC version 3.00
Updated At: 2021-01-21
Changes: Hydraulic CALC 3.00 New Release
❚ ADD COEFFICIENT TABLE
